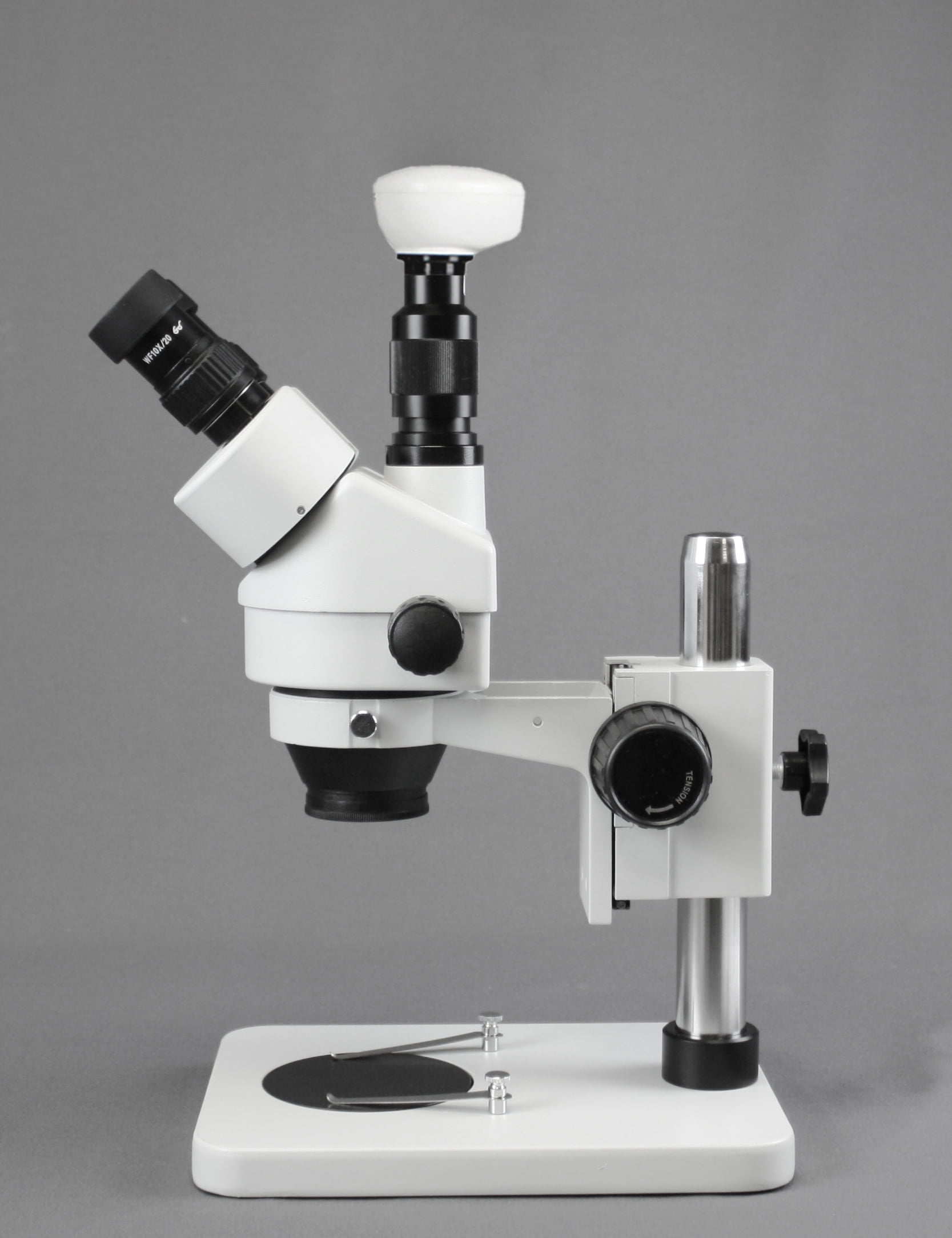

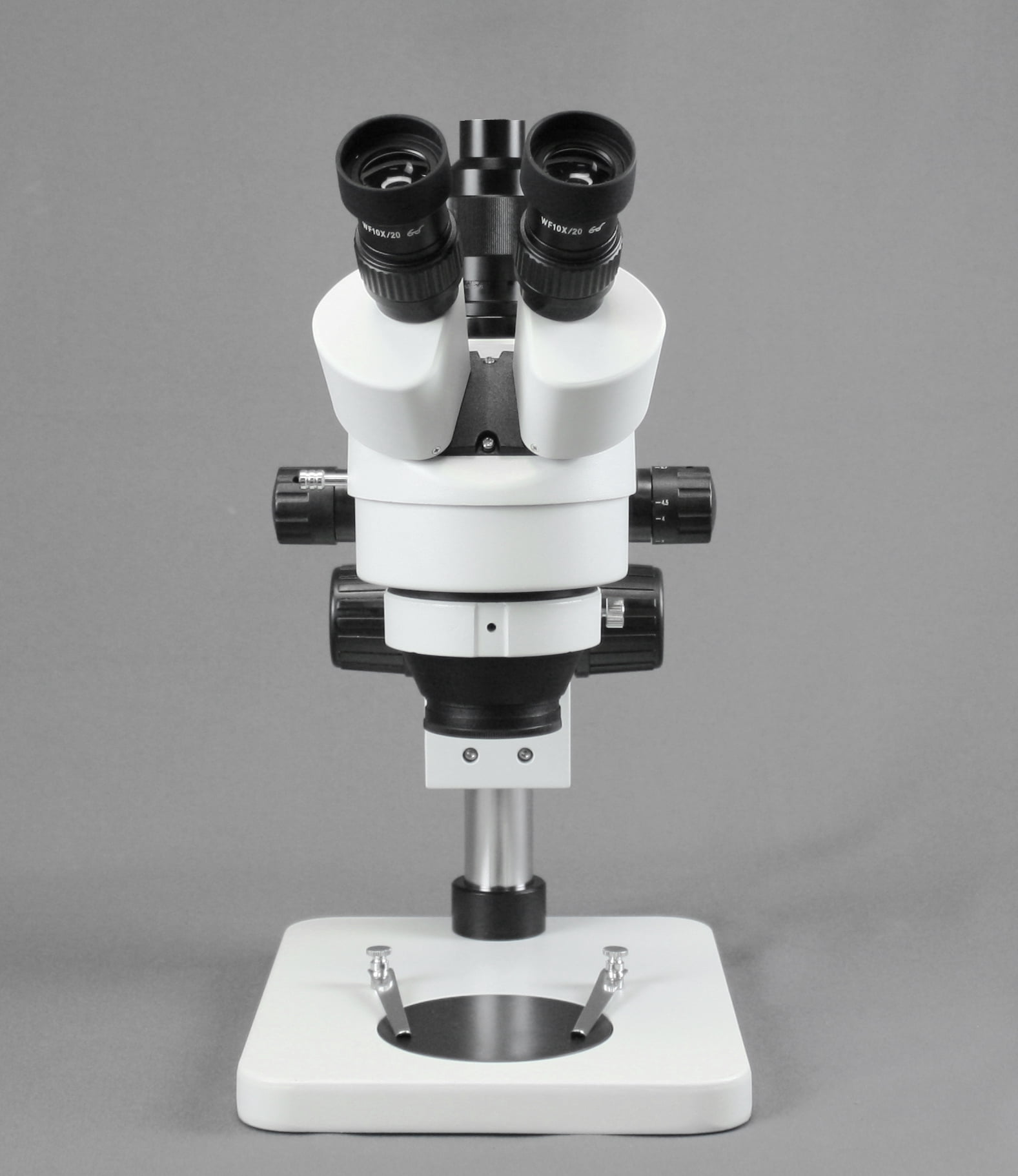

VIsion Scientific VS-1FZ-IFR07-5N Trinocular Zoom Stereo, 10x WF Eyepiece, 0.7x—4.5x Zoom, 3.5x—90x Magnification, Pillar Stand, 144-LED Ring Light, 5.0MP Digital Eyepiece Camera

<p>This Vision Scientific trinocular zoom stereo microscope is ideal for laboratory, industrial or medical applications. Using its high resolution, great depth, and a large field of view, it is the perfect instrument for viewing any three-dimensional or temperature-sensitive specimen or object.</p><p>The compact, thin design of the large base provides added comfort for the user and allows sample positions to remain low, which provides easy accessibility to variable light controls.</p><p><strong>Specifications</strong></p><ul><li>Head: Trinocular, 45° inclined, rotates 360°</li><li>Eyepiece: 10x WF / 20mm high eye point</li><li>Zoom Range: 0.7x---4.5x, 1:6.4 zoom ratio</li><li>Magnification Range: 7x---45x, 5x---90x with the 0.5x &amp; 2x auxiliary Lens</li><li>Working Distance: 100 mm standard, optical working distance can be increase or decrease 30-165 mm with auxiliary lens</li><li>Stage: Black &amp; white reversible stage plate with a pair of stage clips</li><li>Stand: Pillar stand</li><li>Light Source: 144-LED ring light with intensity control</li><li>Overall Dimensions: 15" x 14" x 10" / Weight: 10 lbs</li></ul><p><strong>Camera Specifications</strong></p><ul><li>5.0 megapixel (2592 x 1944 max resolution)</li><li>Frame Rate: 38 fps (640 x 480) / 25 fps (1024 x 768) / 21 fps (1280 x 960) / 5 fps (2592 x 1944)</li><li>JPEG, BMP image format; Windows XP, Vista, 7, 8, 10 compatible; USB 2.0 interface</li></ul><p><strong>Packing List</strong></p><ul><li>Trinocular zoom stereo microscope head</li><li>Pair of 10x WF eyepieces</li><li>Pillar stand</li><li>Focusing arm</li><li>Pair of eye guards</li><li>One dust cover</li><li>User manual</li><li>5x and 2x auxiliary lens</li><li>144-LED ring light with intensity control</li><li>Power adaptor</li><li>5.0 MP digital eyepiece camera</li><li>USB 2.0 cable</li><li>Imaging software CD</li></ul>

• 45° inclined trinocular head that rotates 360°. The trinocular port allows you to connect a digital camera or an HD touch screen. It features a 54-76mm interpupillary adjustment, while both ocular tubes are equipped with a (+/-6) dioptre adjustable, to compensate for eye-strength difference when needed
• 7x---45x standard magnification range, that when used with the included 0.5x & 2x auxiliary lens, expands to a 3.5x---90x magnification range.
• Pillar stand offers a long and flexible working distance. The black and white reversible stage plate provides a contrasting background for the specimen, while the stage clips secure it in place

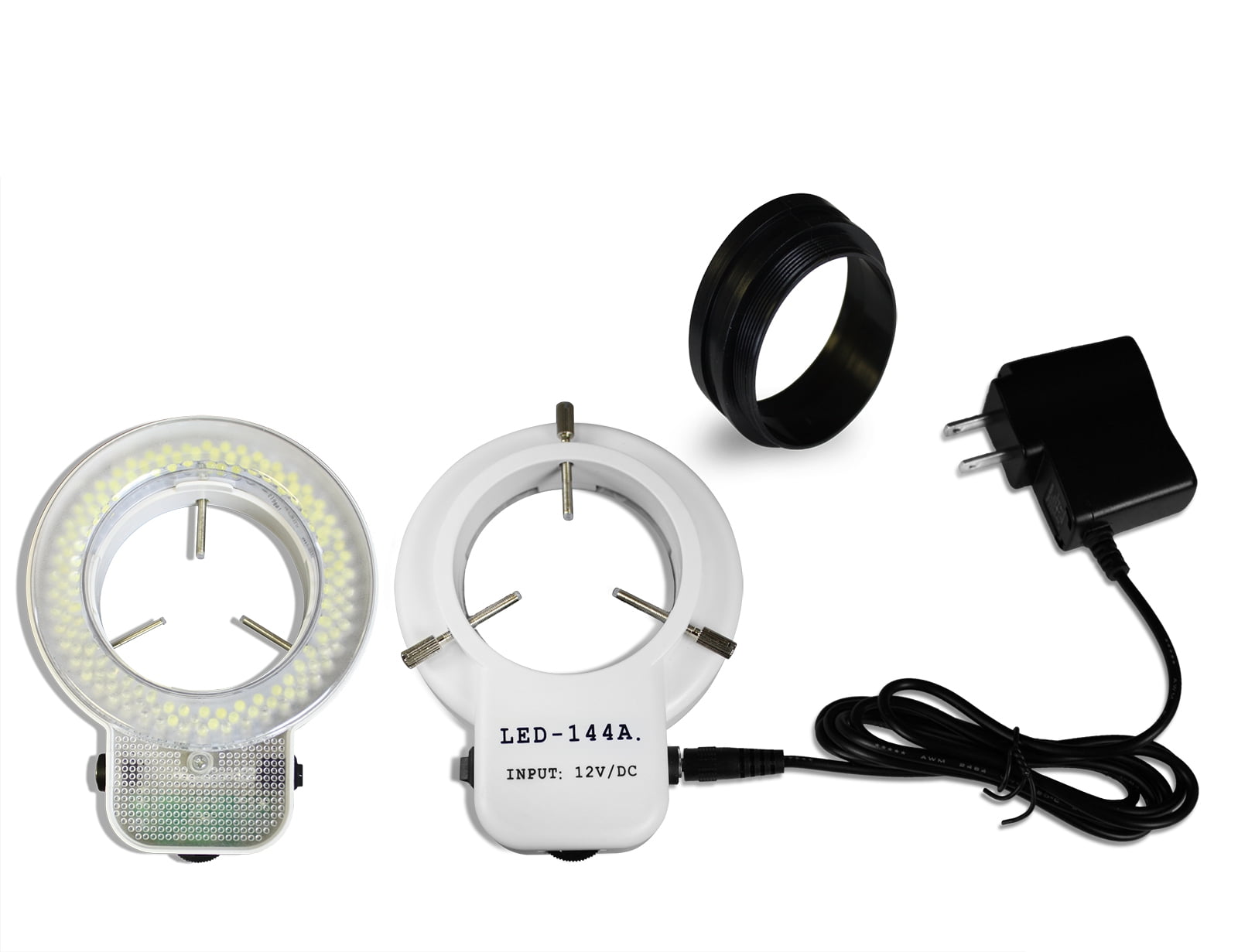

• 144-LED ring light with intensity control, guarantees a clear-and-crisp, cool-to-touch white light that lasts up to 60x longer than traditional tungsten bulbs

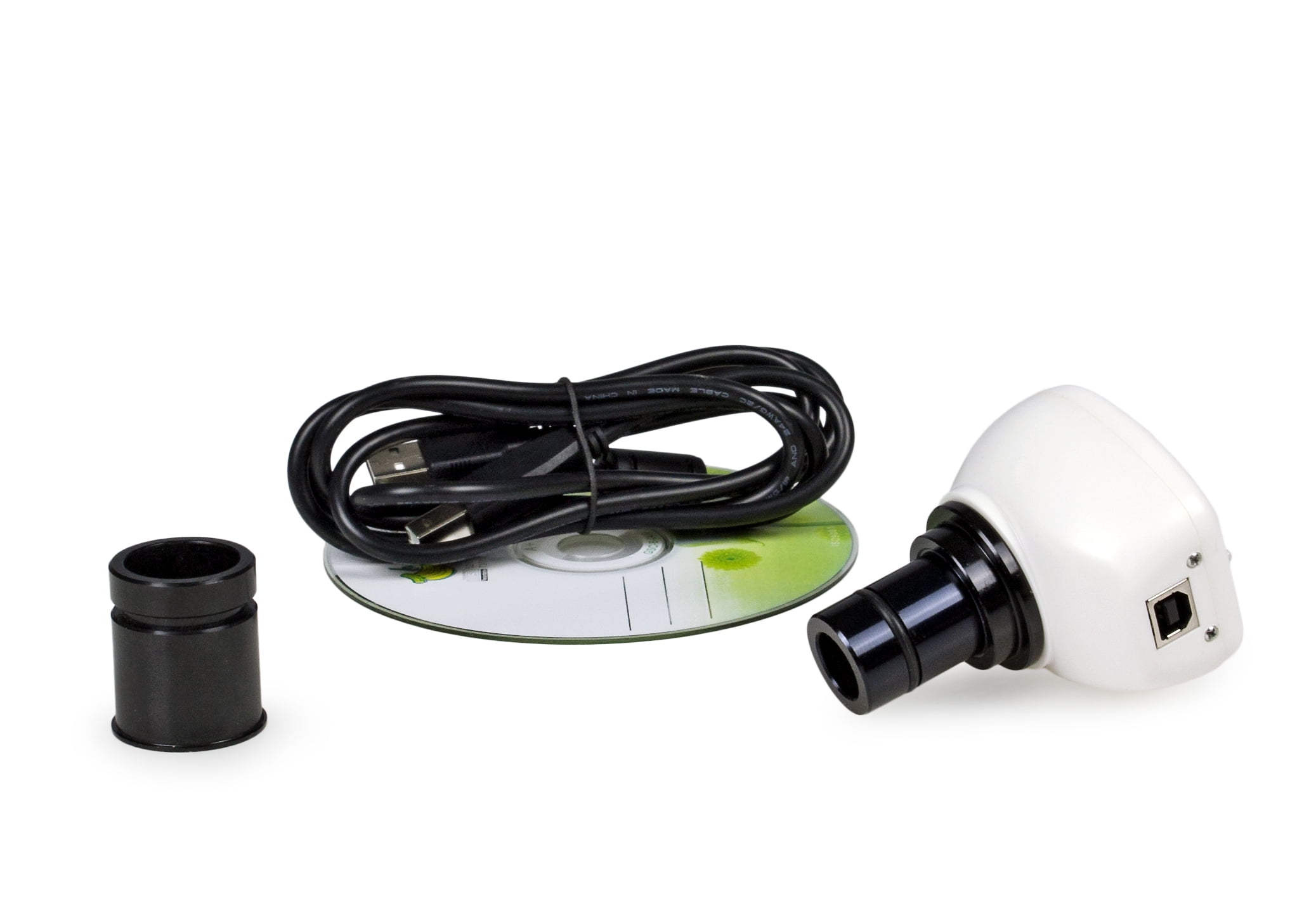

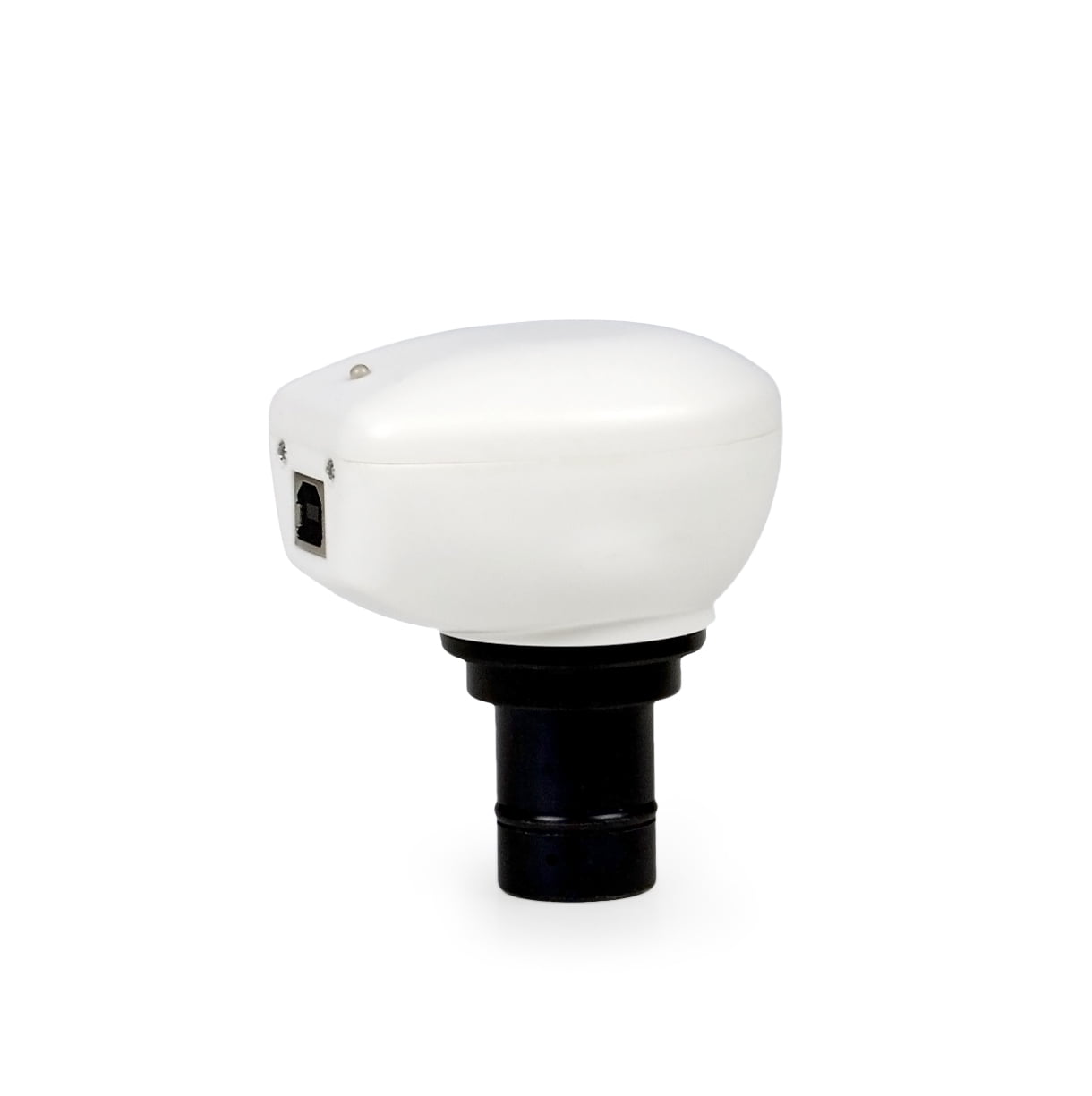

• 5.0 megapixel digital eyepiece camera broadcasts images of the specimen being observed. It offers USB 2.0 plug-and-play compatibility, and comes with a user-friendly imaging software
